THE EQUIPMENT / STE75Room for bigger
groundwork.

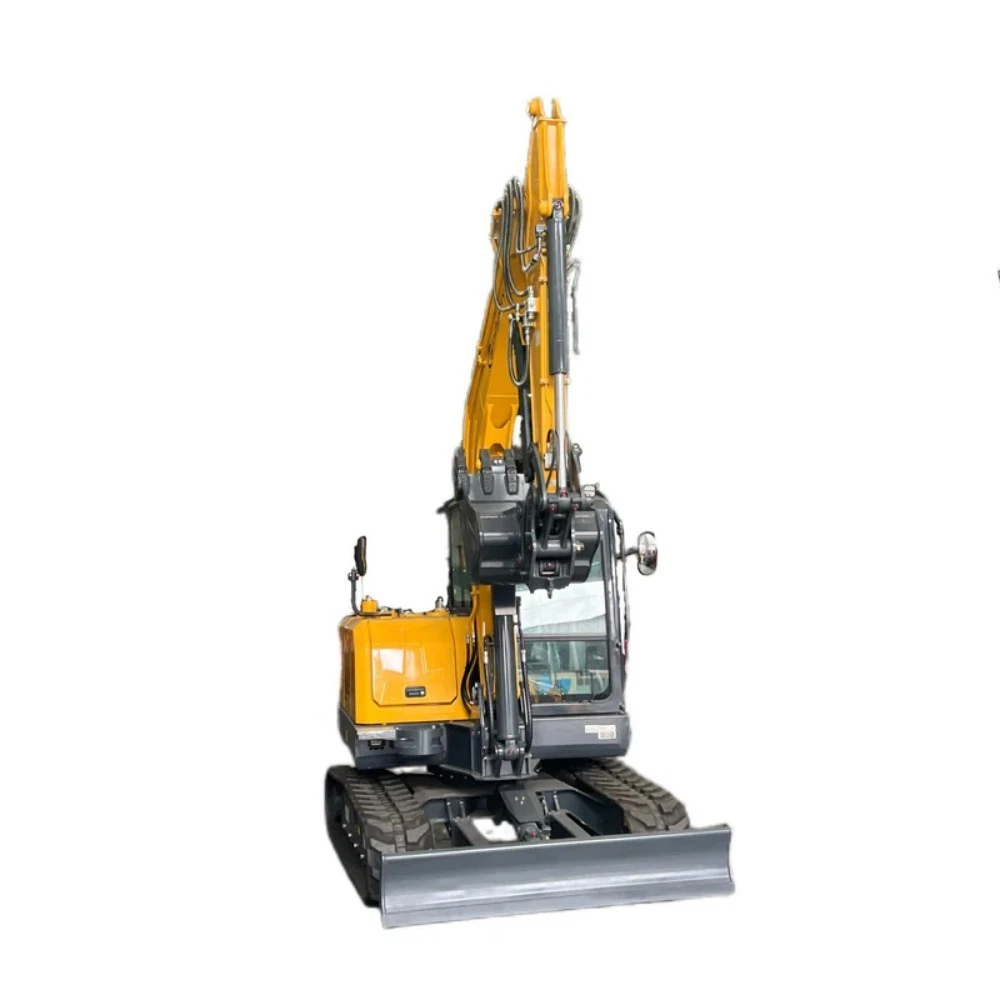

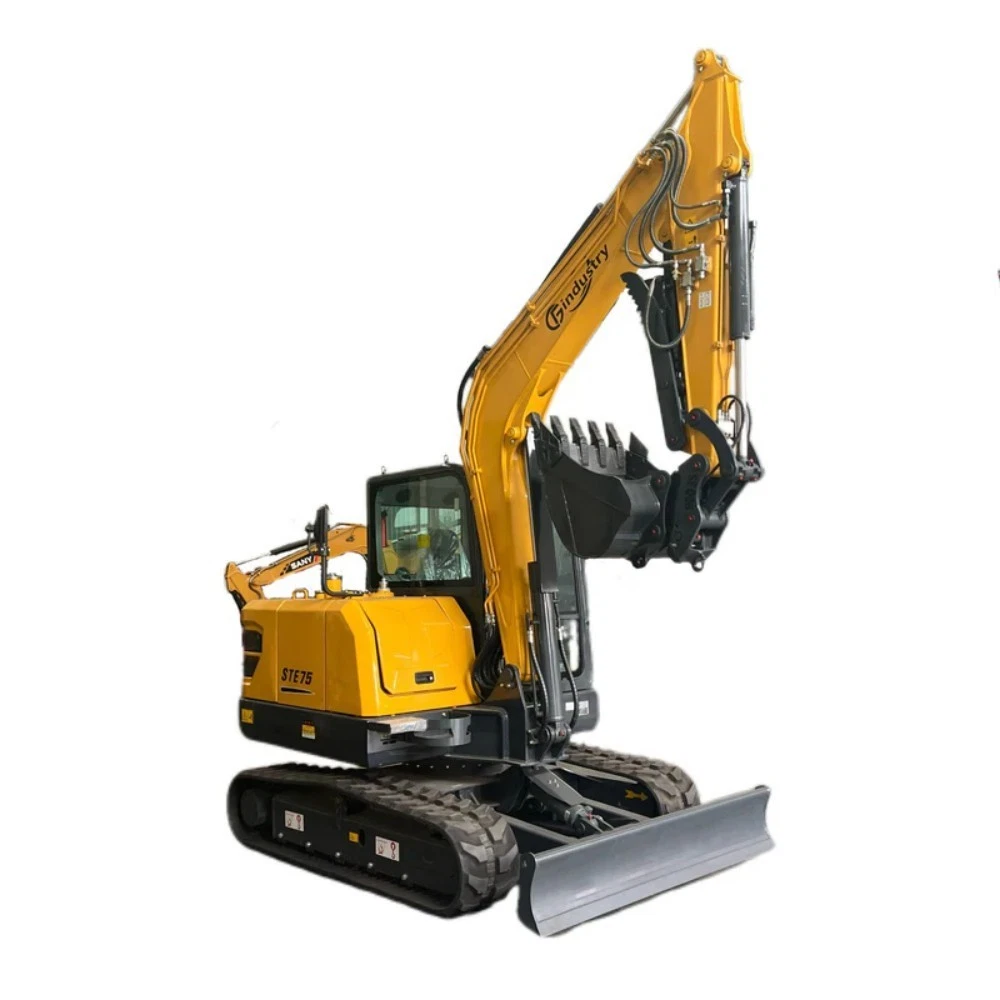

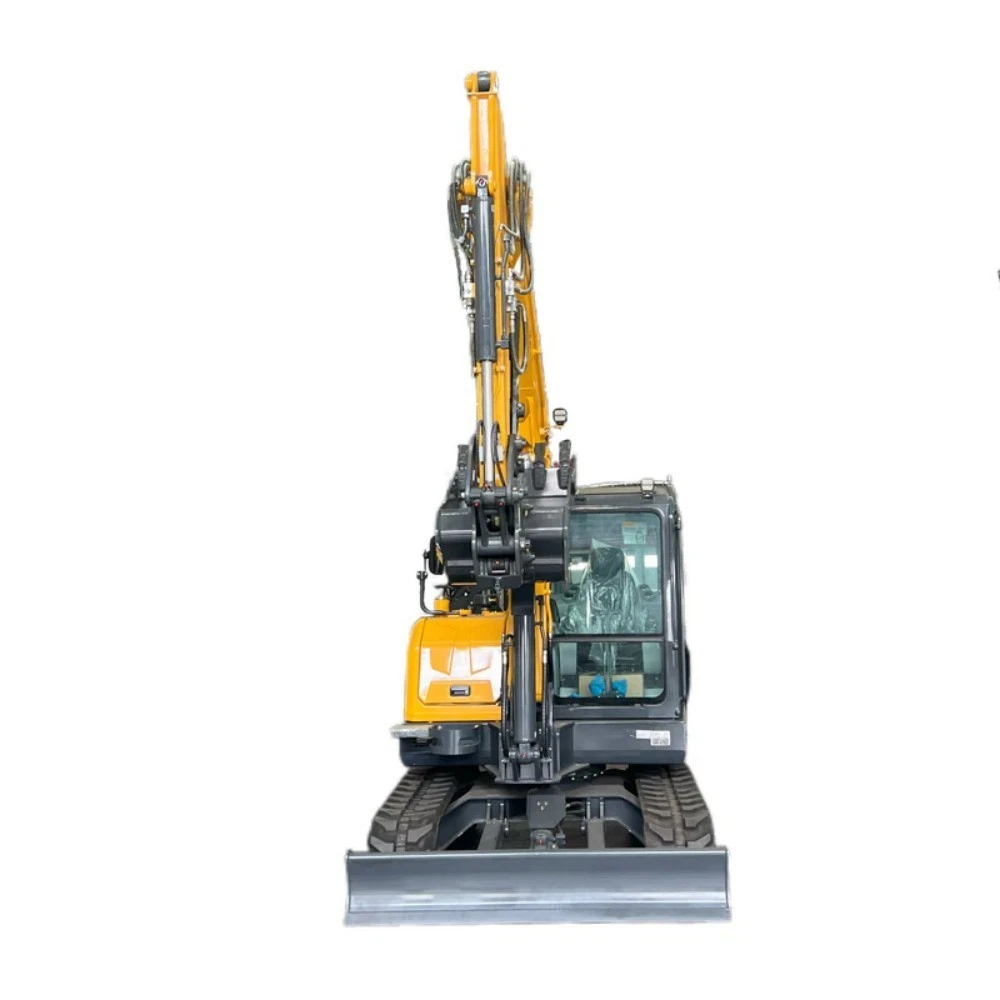

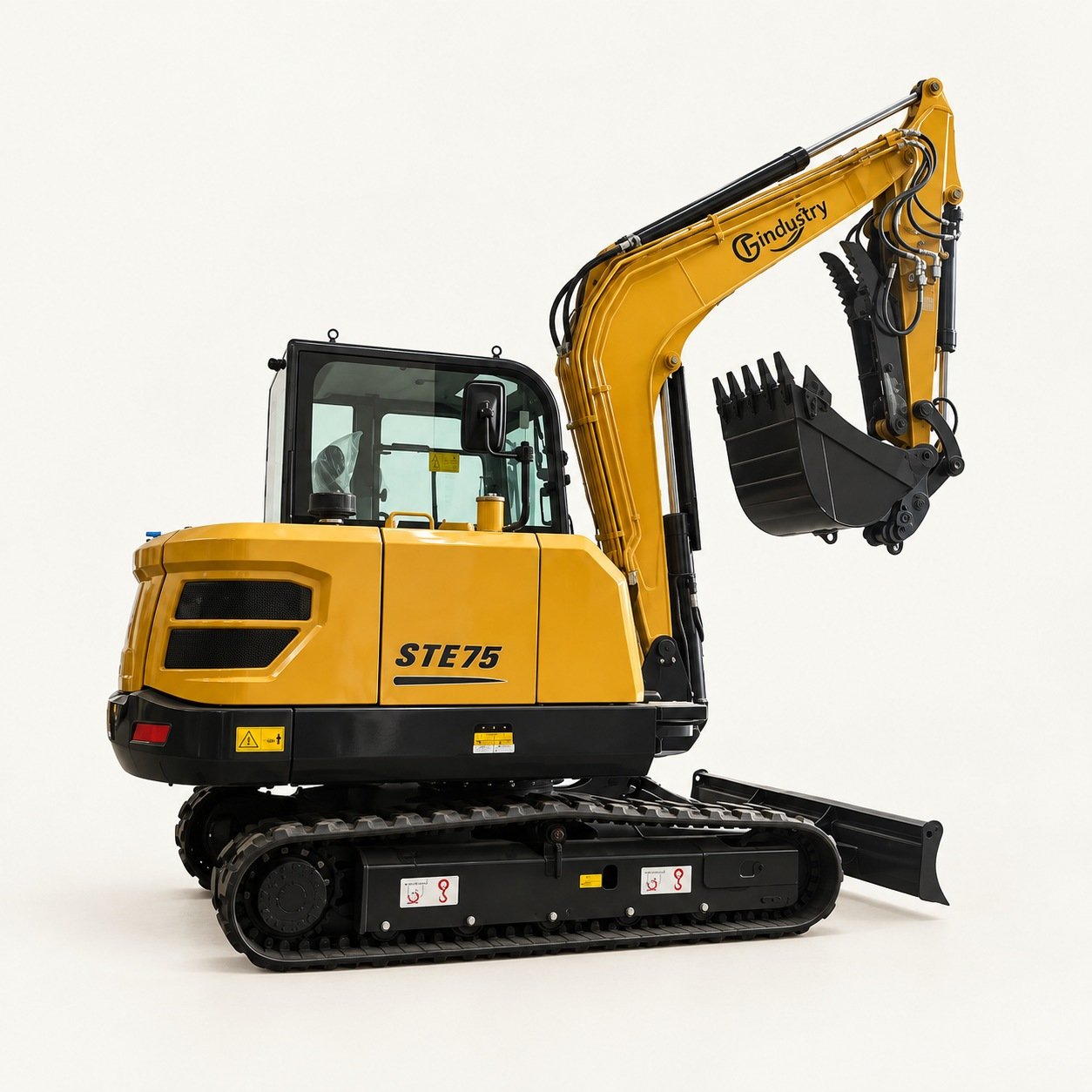

Step up to the STE75 for a larger excavator footprint and working envelope. This listing pairs a Kubota diesel engine with pilot controls and a hydraulic thumb, giving contractors and property owners a cab-equipped option to compare for substantial excavation.
What sets this setup apart.
A larger digging package
The STE75 model reference pairs a 0.327 cu yd (0.25 m³) bucket with a approx. 13,200 lb class (6-metric-ton class) chassis. Compare bucket size and reach with your excavation plan and material-handling needs.

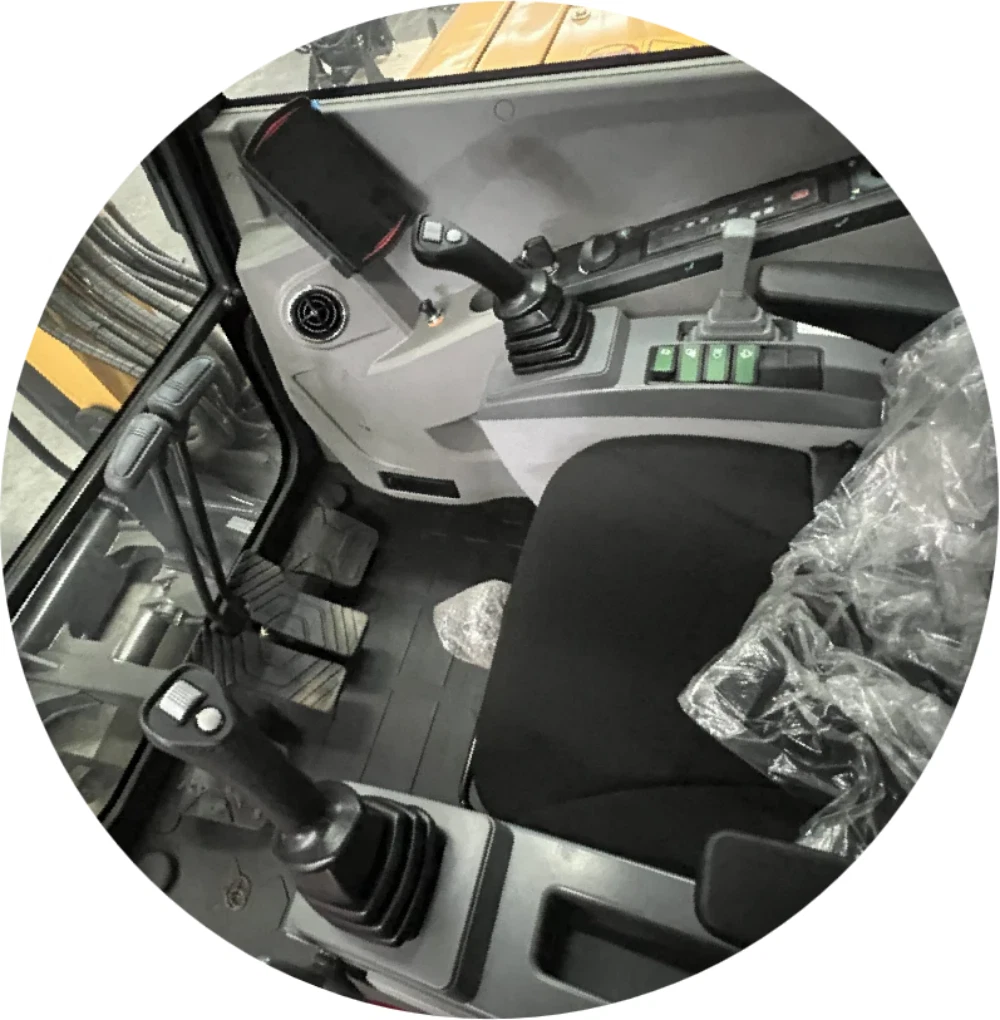

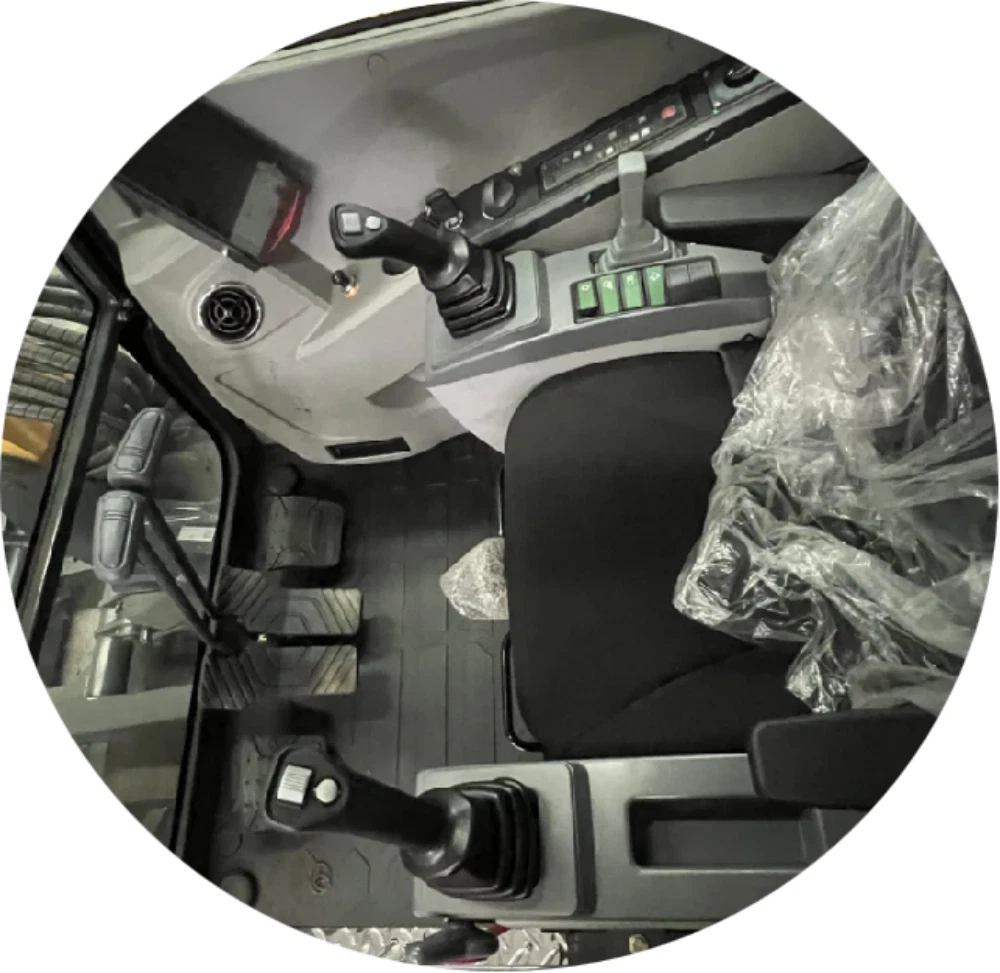

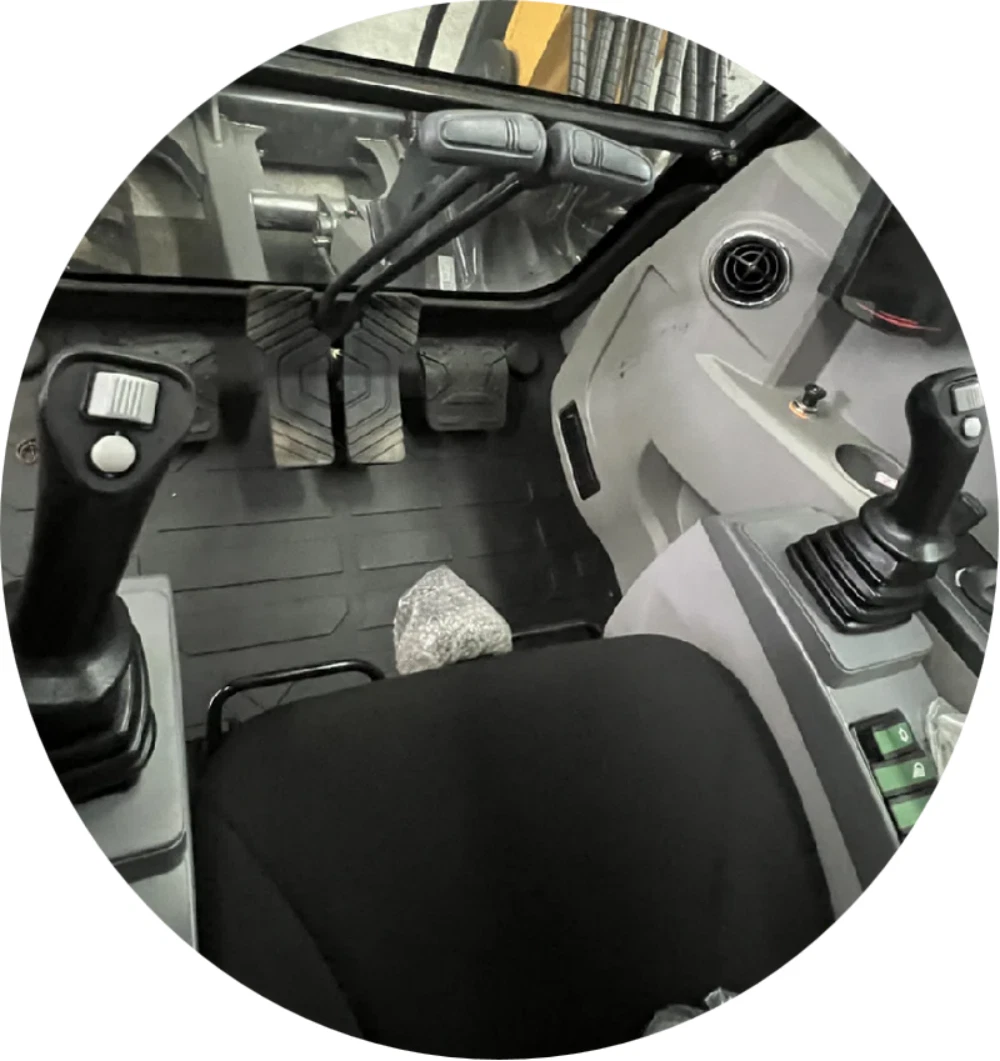

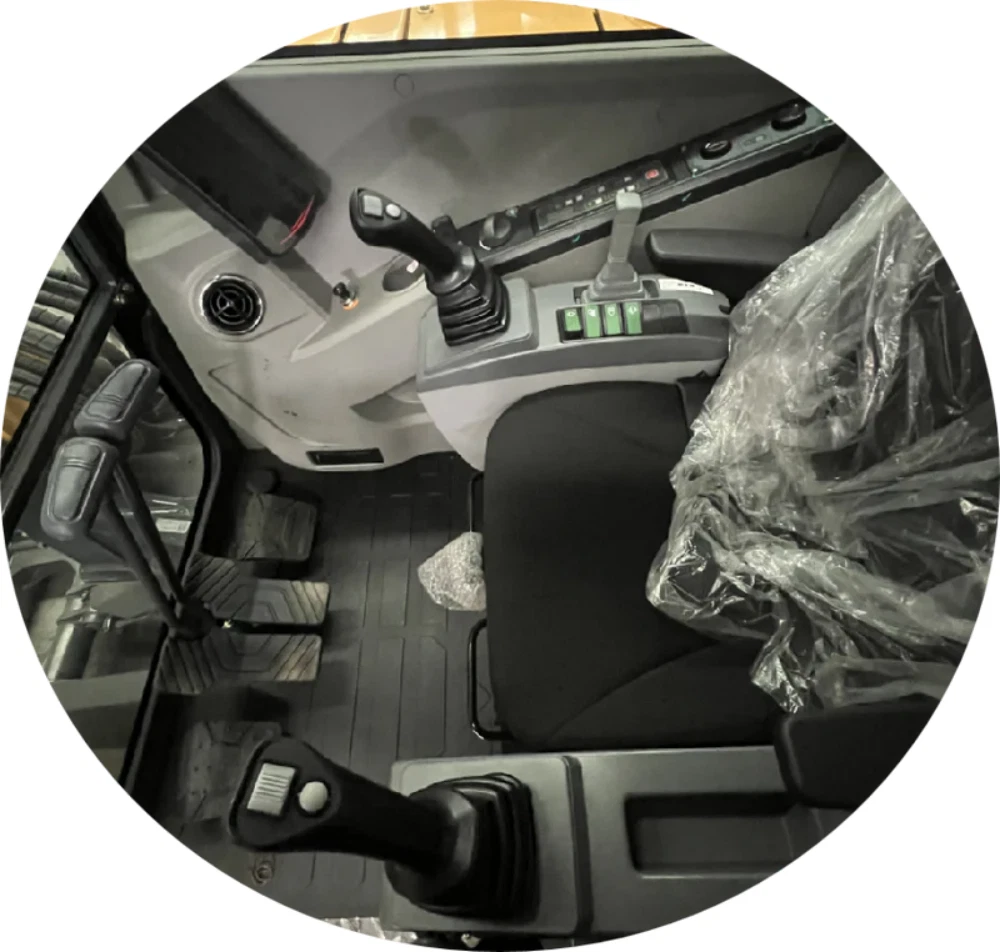

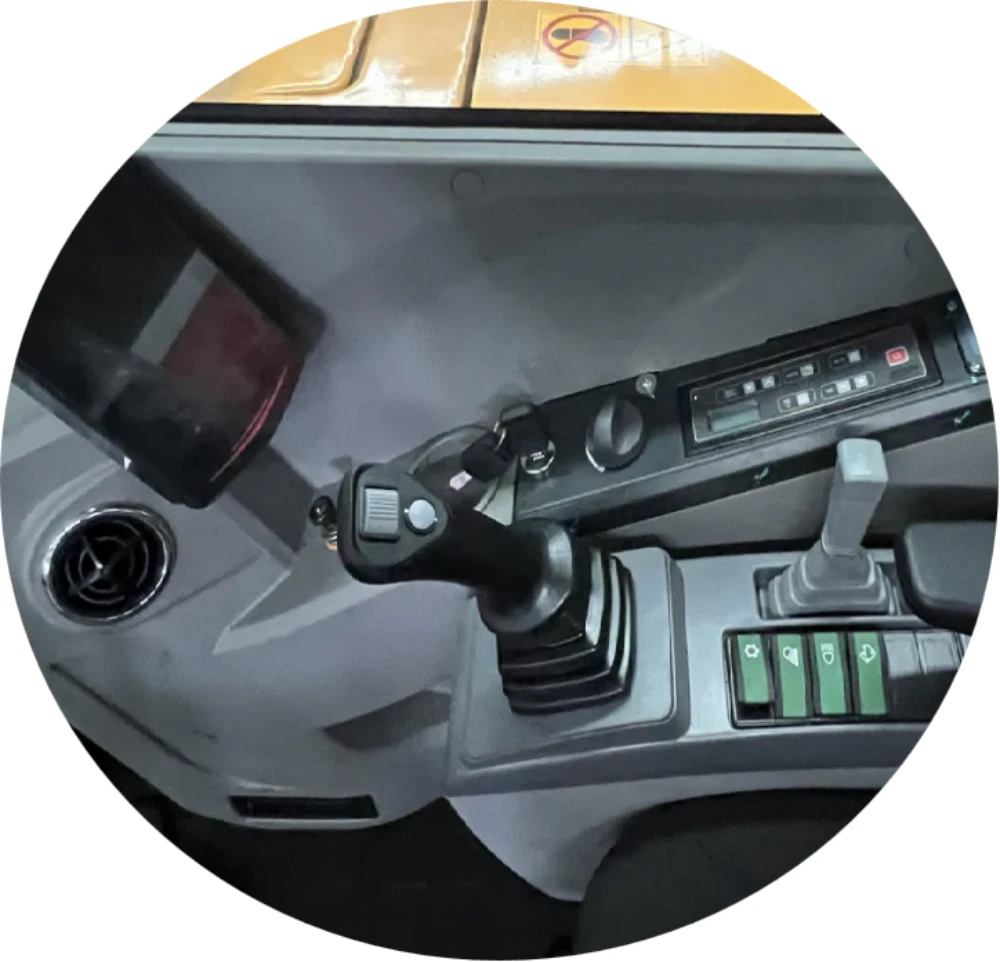

Controls within the cabin

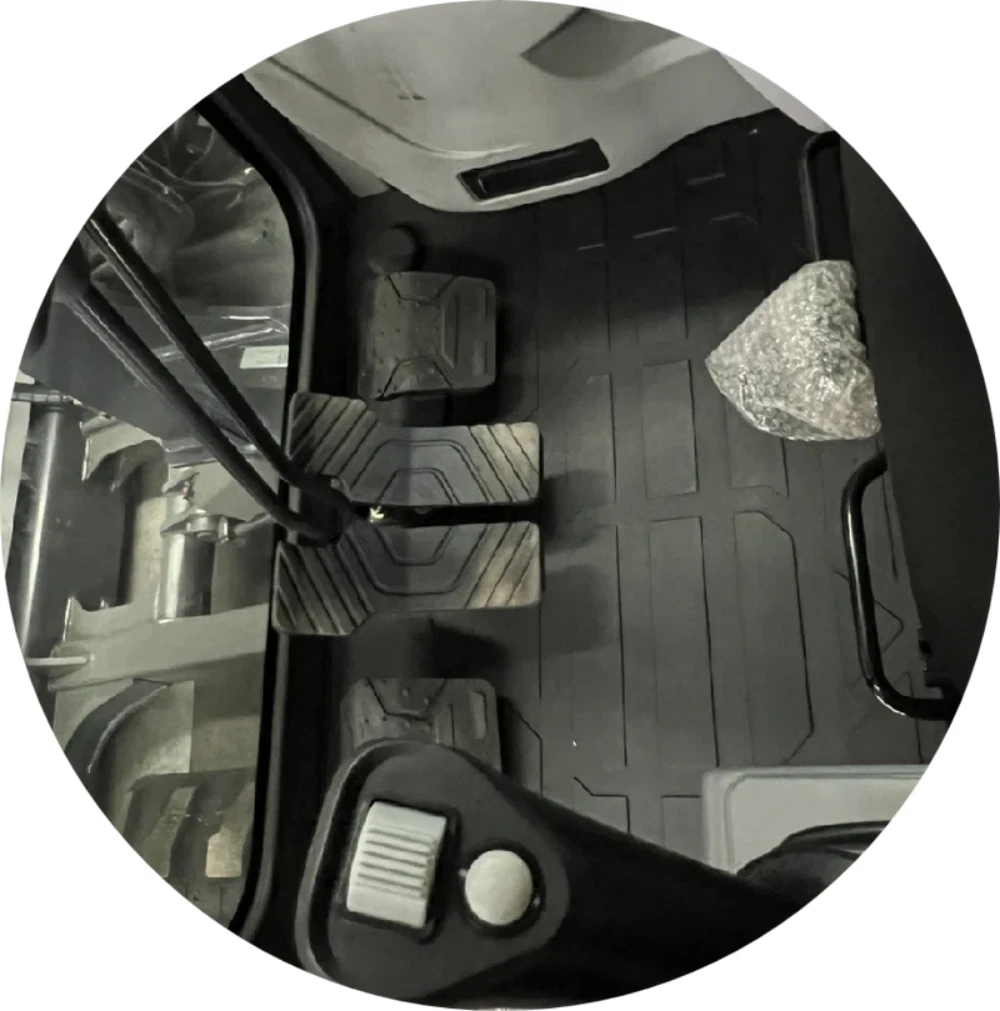

Pilot controls and an enclosed cab are central to this listing’s setup. Use the actual gallery to inspect the operator station, seating, and hydraulic-control arrangement.

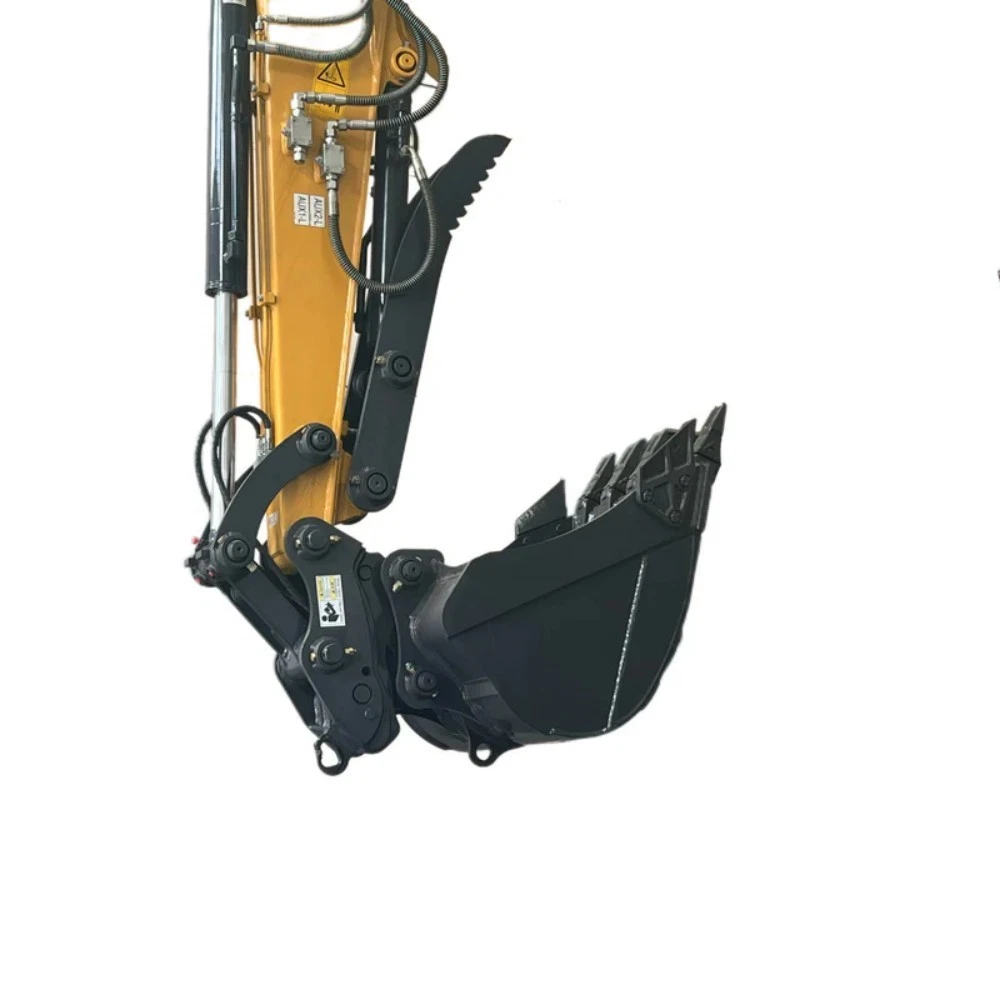

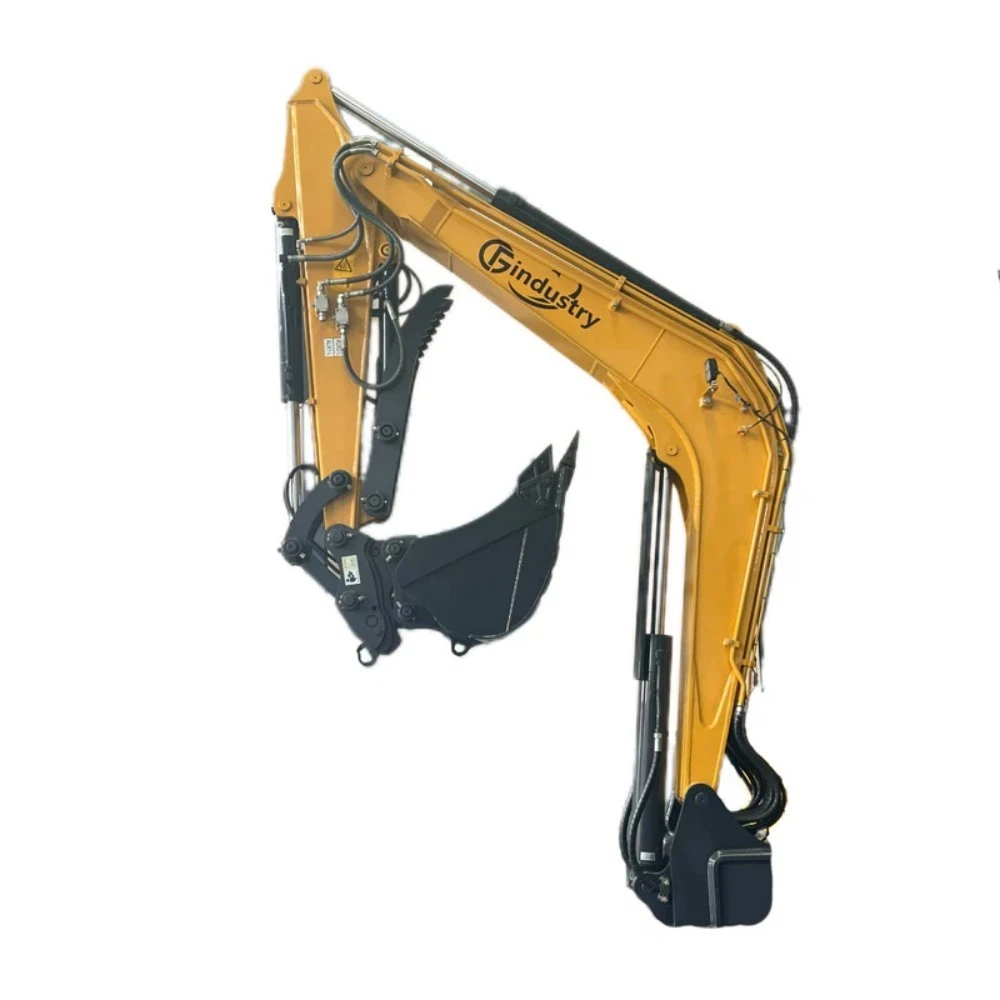

A thumb at the working end
The listed hydraulic thumb adds a gripping point for approved material-handling tasks. Capacity depends on reach, ground conditions, and the machine’s load chart.
Look closely at the machine that matters.

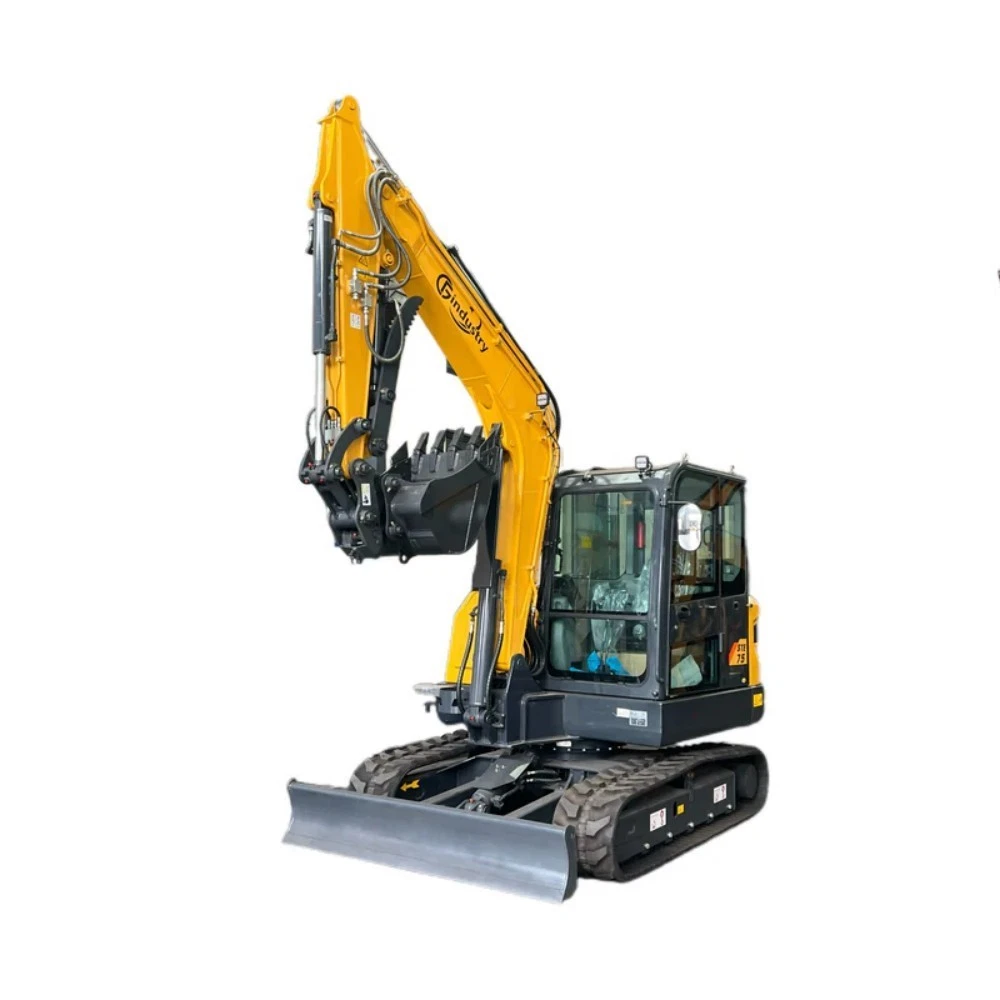

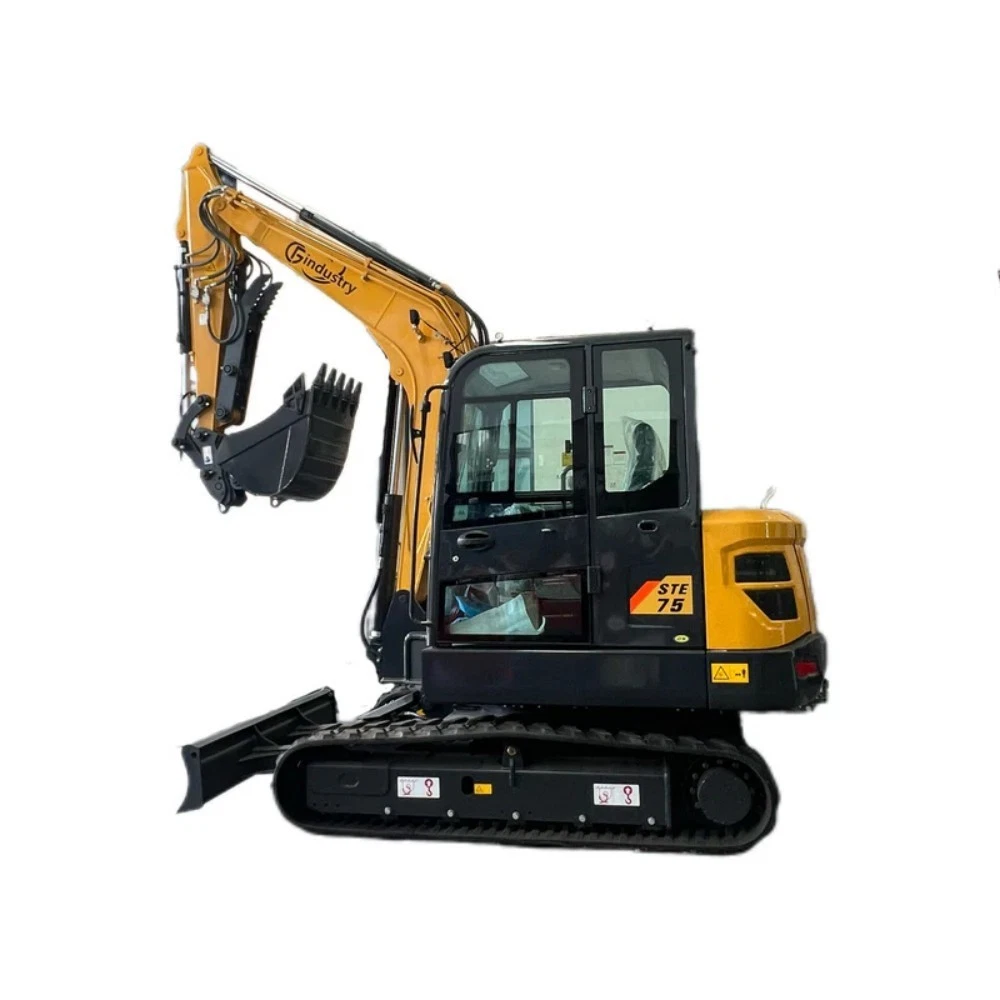

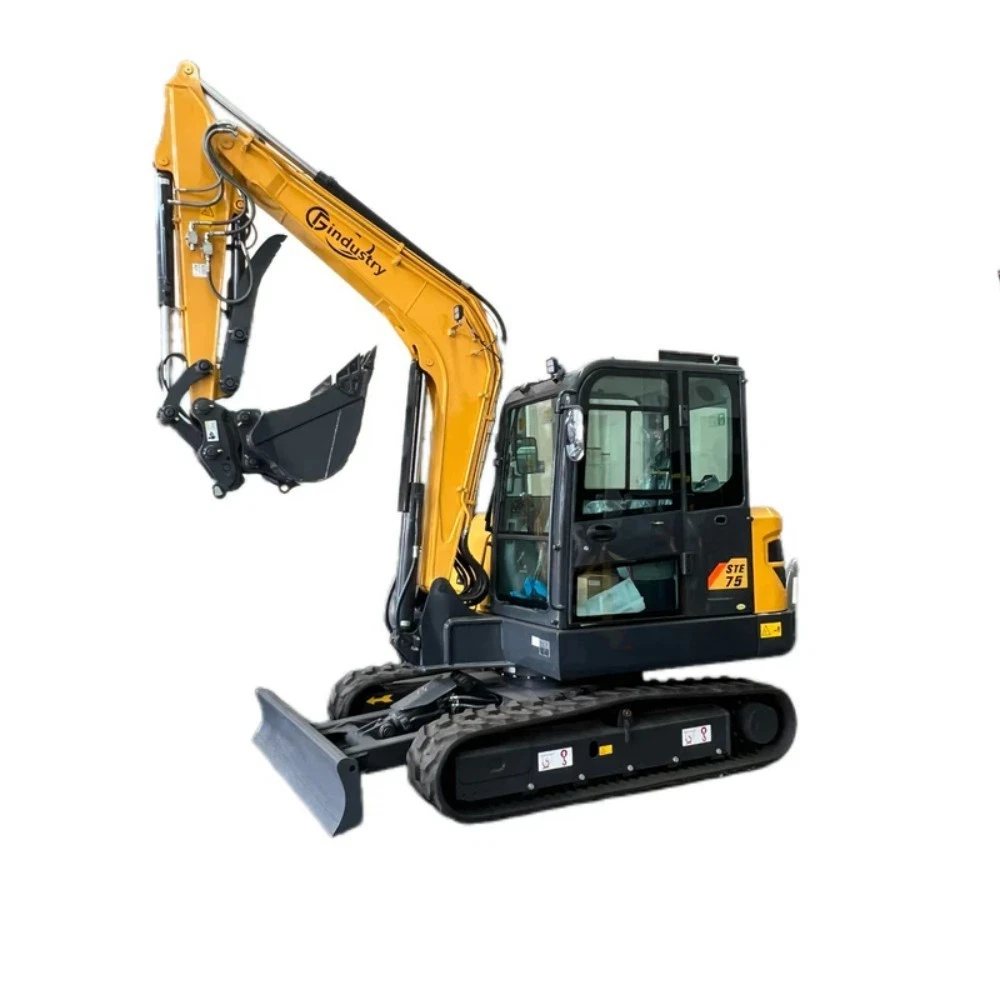

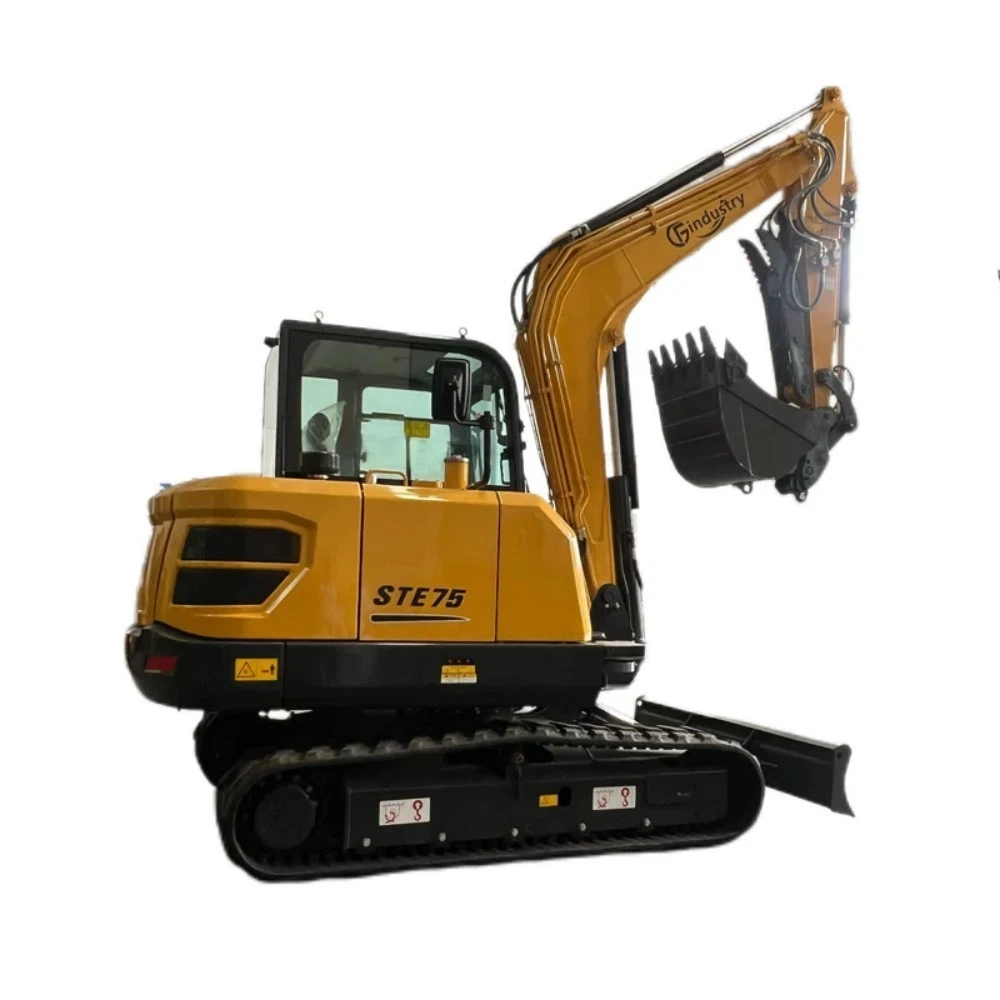

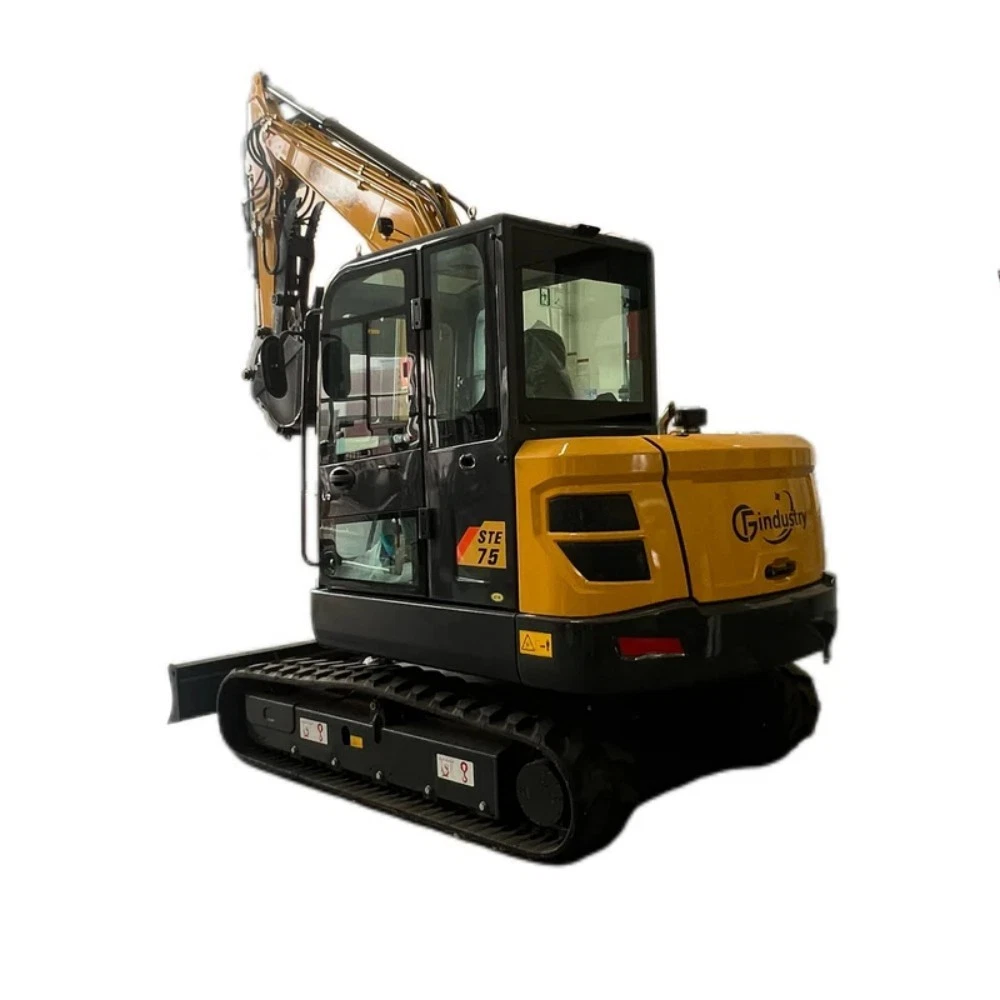

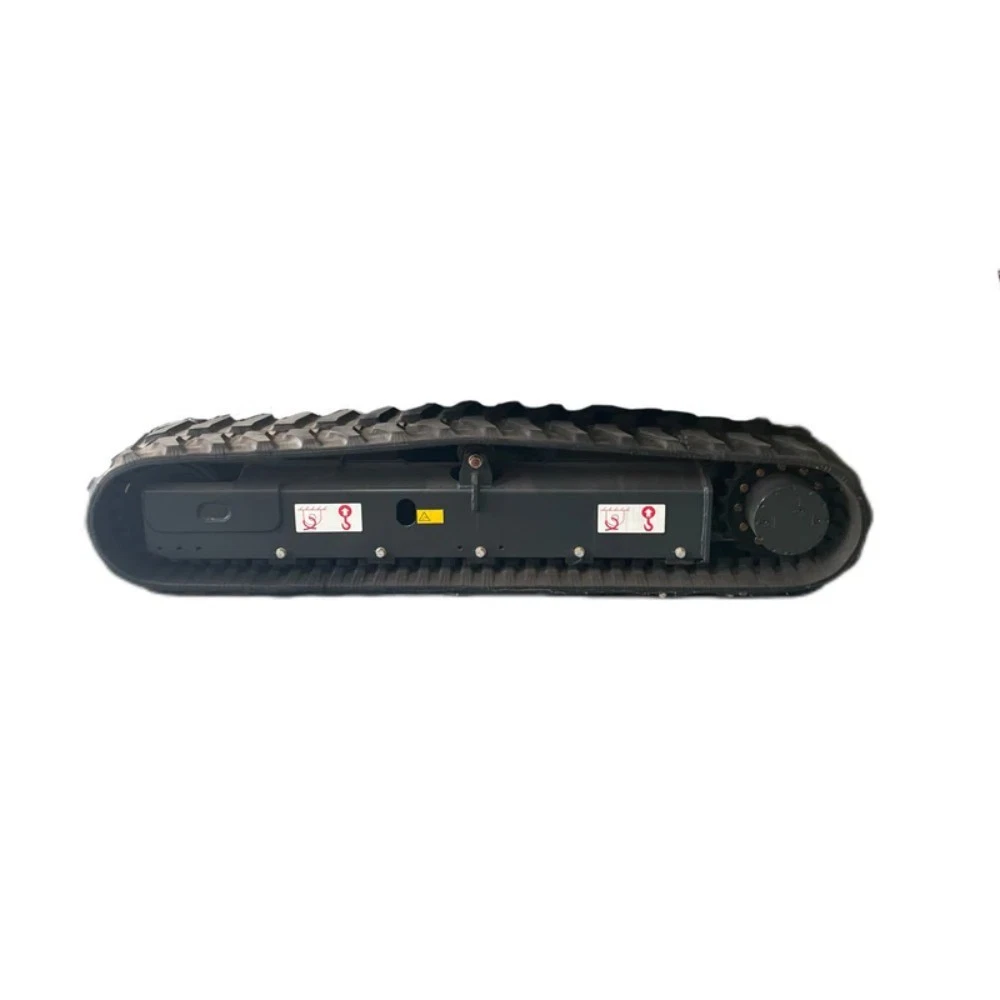

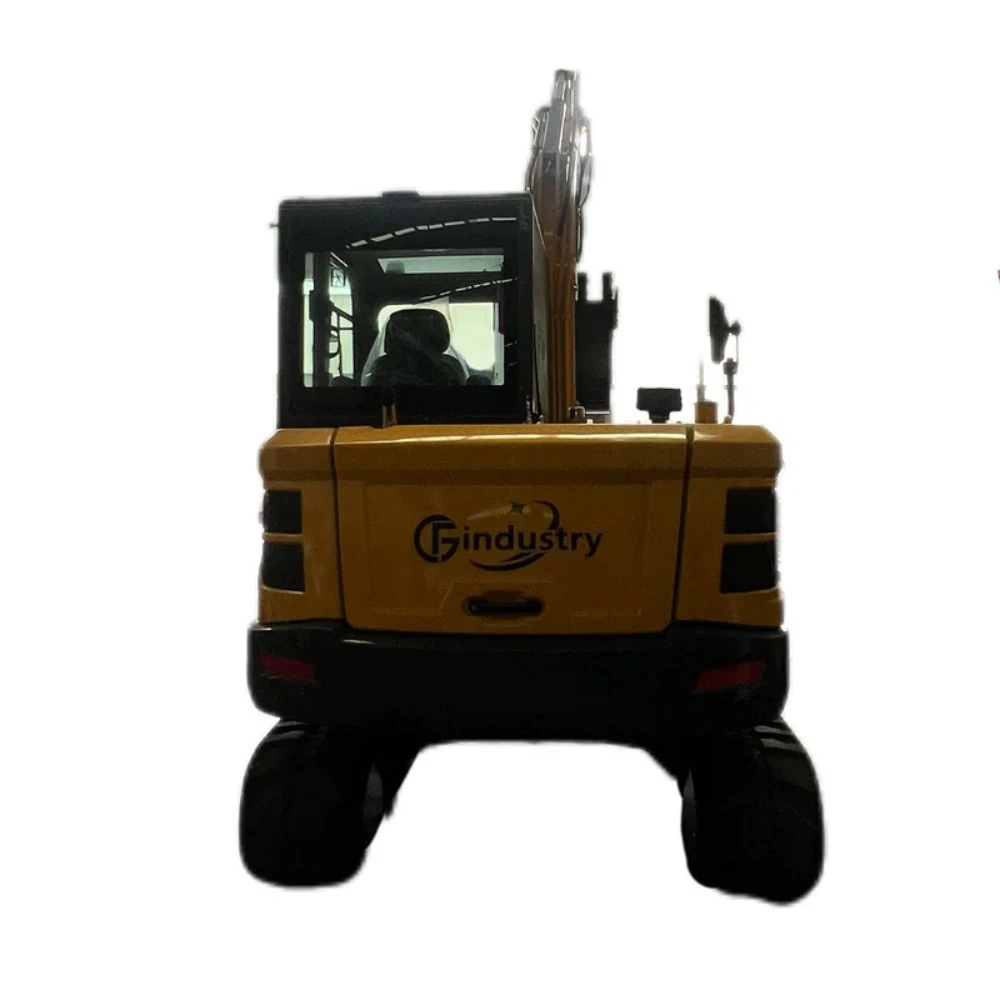

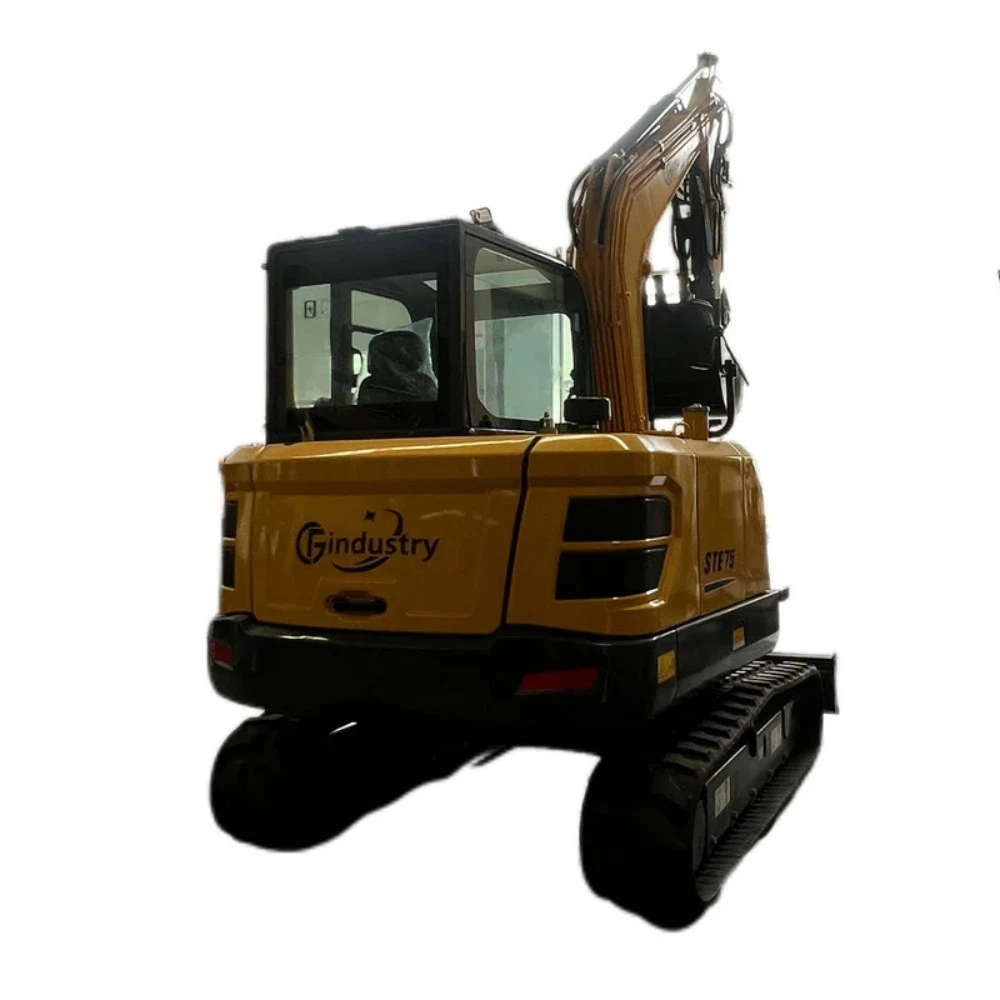

Explore the STE75’s cab, undercarriage, bucket, and hydraulic thumb in the equipment gallery. Compare its larger footprint with your site access and transport plan, then review the working range for the job ahead.
Groundwork with
a bigger perspective.
Plan the access, working envelope, and transport around the complete machine.
STE75 specifications.
STE75 figures below are from the manufacturer manual linked here. Published STE75 build versions differ in height, length, digging depth, and engine rating. Confirm the serial-specific build sheet with BK Earthmoving before using these reference figures for clearance, transport, or purchase decisions.
U.S. measurements are shown first. Converted values are approximate; original metric references are retained.
| Machine | |
|---|---|
| Model | STE75 |
| Reference operating weight | 13,140 lb (5,960 kg) |
| Engine | |
| Engine family | Kubota V2607 diesel |
| Manual-rated output | 46.9 hp (35 kW) at 2,200 rpm |
| Cooling | Water-cooled |
| Dimensions | |
| Overall length — manual reference | 19.31 ft (5,885 mm) |
| Overall width | 78.7 in (2,000 mm) |
| Cab height — manual reference | 8.43 ft (2,570 mm) |
| Working range | |
| Reference bucket capacity | 0.327 cu yd (0.25 m³) |
| Maximum digging depth — manual reference | 12.53 ft (3,820 mm) |
| Maximum digging radius | 20.14 ft (6,140 mm) |
| Maximum dumping height — manual reference | 13.39 ft (4,080 mm) |
| Equipment | |
| Listed setup | Enclosed cab, pilot controls, hydraulic thumb |
The right tool starts with the right fit.
A digging bucket and hydraulic thumb are described in this listing. Confirm the exact supplied bucket, mounting dimensions, and thumb configuration. For other tools, obtain the auxiliary hydraulic flow, pressure, return requirements, and approved attachment weight rather than relying on the engine rating.
Tell BK Earthmoving the machine and the task.
Have the model, mounting measurements, and proposed tool details ready.
Know the details before you order.
Bring your site measurements and equipment requirements to the conversation.
Which machine and accessories will I receive?
Confirm the exact unit, model variant, condition, and supplied bucket or tools with BK Earthmoving. Ask for current photos and the unit-specific build sheet where needed.
Will it fit my site and transport setup?
Measure the narrowest access, overhead clearance, turning space, and loading route. Use the confirmed machine dimensions and operating weight to plan suitable transport.
What about delivery, returns, and warranty?
Ask BK Earthmoving for the current delivery charge and timing for your address, unloading requirements, and applicable return and warranty terms before ordering.
How should I prepare for operation?
Read the exact machine and attachment manuals. Complete the recommended pre-use checks and arrange suitable operator training, ground assessment, and utility checks for your project.
