Description
THE EQUIPMENT / CFG-40UFMore working range.
A complete cab setup.

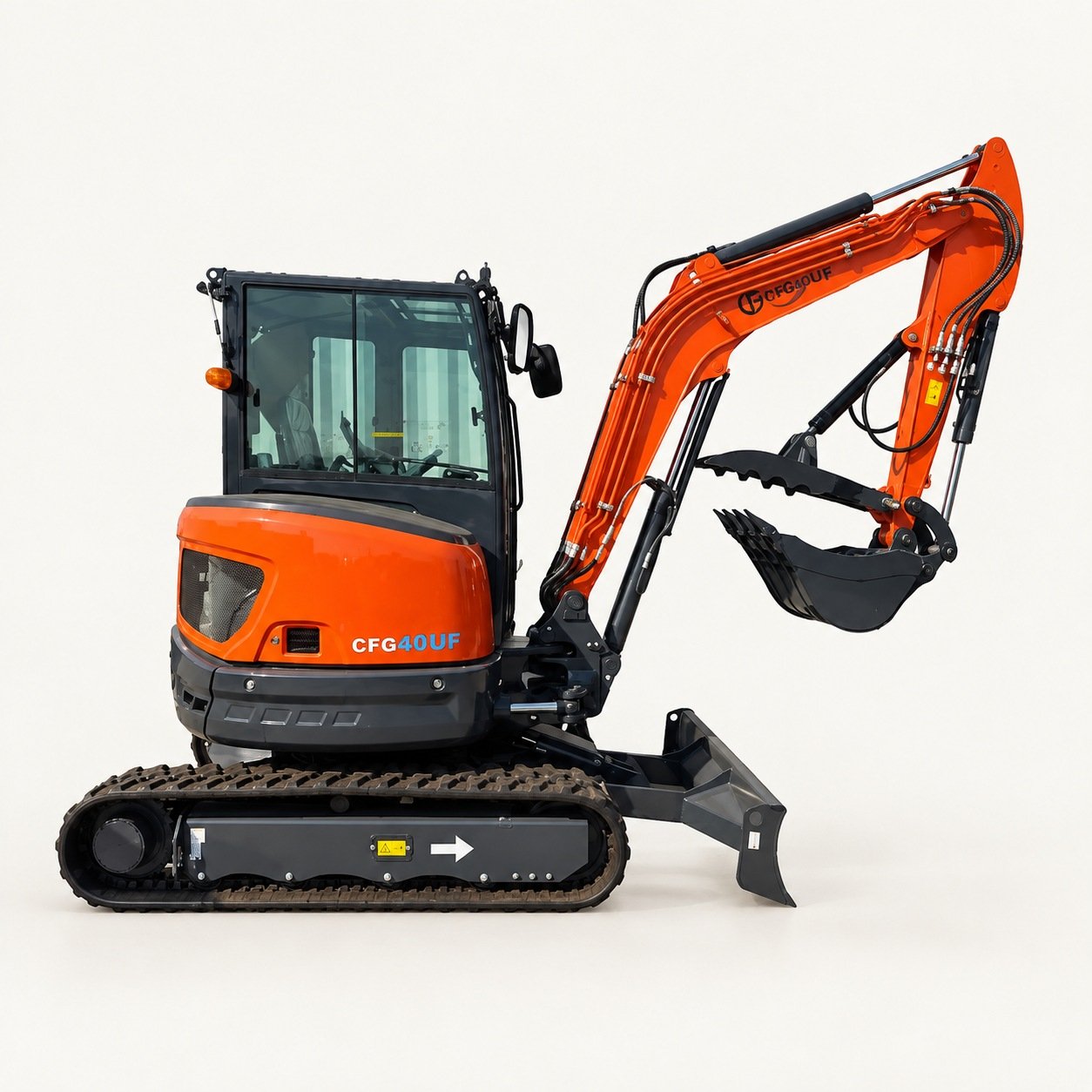

The CFG-40UF moves into a larger compact-excavator class with a Kubota D1703 diesel engine and enclosed A/C cabin. Pilot controls, a side-swing boom, and the listed hydraulic thumb give you several configuration details to compare.
What sets this setup apart.
Reach beyond the small-machine class
A reference digging depth of 10.89 ft (3.32 m) supports comparison for deeper trench and footing work. Check the required depth, ground conditions, and safe working method before selecting the machine.
Space for the operator

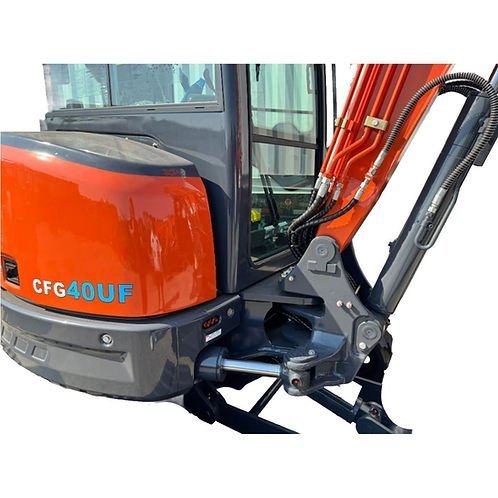

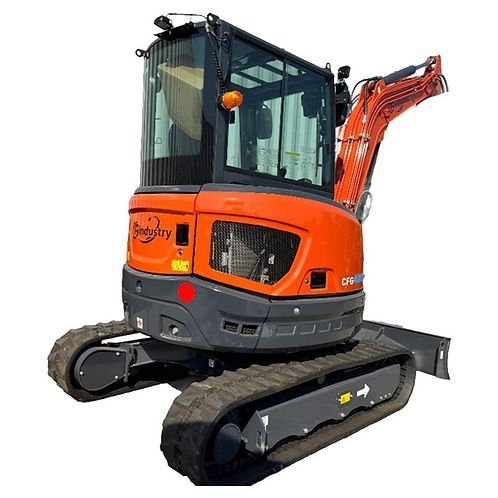

The listing describes an enclosed cabin with air conditioning and pilot controls. Inspect the cab and control layout in the real equipment photographs.
Handle the working end

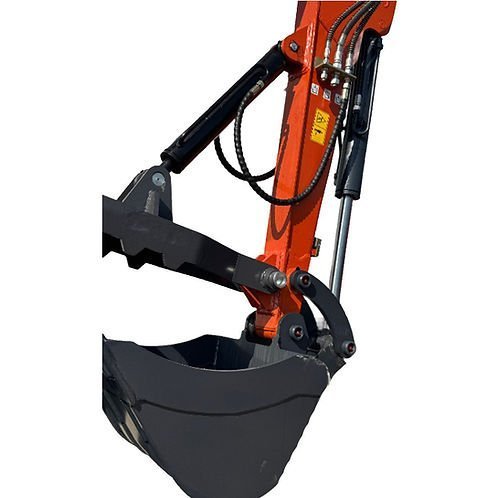

The listed hydraulic thumb and swing boom broaden how the bucket can be positioned. Confirm the supplied configuration and use manufacturer limits for all lifting and gripping tasks.
A larger compact package, in detail.

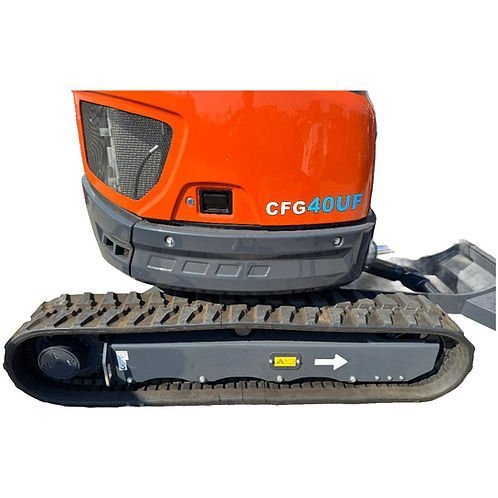

The 66.9 in (1,700 mm) width and published working envelope matter as much as the nominal approx. 8,800 lb class (4-metric-ton class). Review the tracks, cab, blade, and boom photographs before planning access or transport.
Give the groundwork
the right machine.
Match excavation dimensions and available space with the equipment you bring to site.

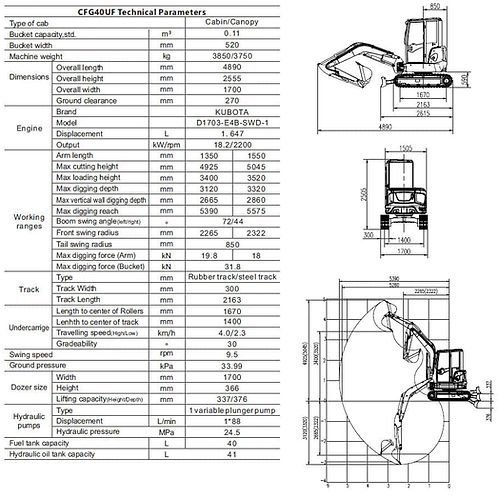

CFG-40UF specifications.
Specifications are model references checked against the linked manufacturer documentation and this listing. Build versions and supplied equipment can vary. Confirm the exact unit, configuration, dimensions, and included tools with BK Earthmoving before ordering.
U.S. measurements are shown first. Converted values are approximate; original metric references are retained.
| Machine | |
|---|---|
| Model | CFG-40UF |
| Listed operating weight | 8,378 lb (3.8 metric tons) |
| Engine | |
| Engine | Kubota D1703 diesel |
| Dimensions | |
| Overall length | 16.04 ft (4,890 mm) |
| Overall width | 66.9 in (1,700 mm) |
| Overall height | 8.38 ft (2,555 mm) |
| Working range | |
| Maximum digging depth | 10.89 ft (3,320 mm) |
| Maximum digging height | 16.55 ft (5,045 mm) |
| Maximum dumping height | 11.55 ft (3,520 mm) |
| Maximum digging radius | 18.29 ft (5,575 mm) |
| Reach at ground level | 17.88 ft (5,450 mm) |
| Operator setup | |

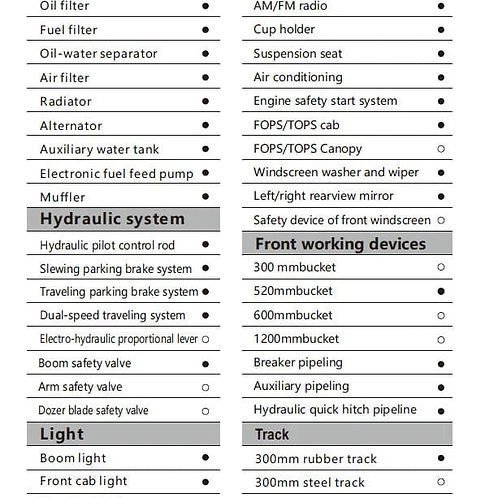

| Listed equipment | Pilot controls, A/C cab, side-swing boom, hydraulic thumb |
The right tool starts with the right fit.
The original listing specifies 1.4 in (35 mm) attachment pins; measure and confirm the unit’s mounting dimensions before buying another tool. Pin spacing and bracket width also matter. The machine’s total hydraulic flow is not an auxiliary-tool rating, so obtain the actual auxiliary flow and pressure for powered attachments.
Tell BK Earthmoving the machine and the task.
Have the model, mounting measurements, and proposed tool details ready.
Know the details before you order.
Bring your site measurements and equipment requirements to the conversation.
Which machine and accessories will I receive?
Confirm the exact unit, model variant, condition, and supplied bucket or tools with BK Earthmoving. Ask for current photos and the unit-specific build sheet where needed.
Will it fit my site and transport setup?
Measure the narrowest access, overhead clearance, turning space, and loading route. Use the confirmed machine dimensions and operating weight to plan suitable transport.
What about delivery, returns, and warranty?
Ask BK Earthmoving for the current delivery charge and timing for your address, unloading requirements, and applicable return and warranty terms before ordering.
How should I prepare for operation?
Read the exact machine and attachment manuals. Complete the recommended pre-use checks and arrange suitable operator training, ground assessment, and utility checks for your project.
